Custom Cutting Tools Case Studies Overview
These custom cutting tools case studies highlight not only the performance results our customers achieve but also the engineering approach behind every tool we design. Each project demonstrates how precise tool geometry, carbide selection, and advanced grinding accuracy work together to deliver measurable improvements in machining performance, reliability, and long‑term production efficiency. By examining these real‑world examples, manufacturers gain insight into how our engineering decisions directly influence tool life, consistency, and overall process stability.
Our engineering team collaborates closely with customers to understand their machining challenges at a deeper level. This includes analyzing existing processes, identifying inefficiencies, and determining where custom cutting tools can provide a competitive advantage. Through this hands‑on approach, we design solutions that often replace multiple tools, reduce tool changes, and improve consistency across high‑volume production environments. These benefits are especially valuable for manufacturers working with difficult materials, tight tolerances, or demanding production schedules.
How Our Custom Cutting Tools Case Studies Deliver Measurable Improvements
Custom Corner Radius End Mill
Lower cost, same critical geometry
A high-use application depended on a purchased corner-radius end mill costing roughly $100 per tool. APG engineered and manufactured a replacement with the required geometry and performance characteristics.
Results
• Produced at roughly 20% of the prior purchase cost
• Delivered repeatable performance in a high-use application
• Created a geometry platform for similar follow-on applications
Custom Step
Drill
One tool, multiple features, better process control
A production application required tight concentricity between two hole diameters and a chamfer. The prior process created quality issues and inefficiency.APG designed a custom step drill to produce all three features in a single operation.
Results
• Improved concentricity and process consistency
• Reduced scrap
• Reduced machining time
• Increased parts per tool
Custom Carbide Reamer
Better size control in a difficult stainless application
A nitride-coated 15-5 stainless application was using a boring process that struggled with inconsistent hole size, high insert wear, and long cycle times.APG designed a custom reamer using 6% cobalt grade carbide to improve stability and hold size more consistently.
Results
• Improved dimensional consistency
• Increased parts per tool
• Reduced cycle time
• Lowered wear-related process disruption
Custom Carbide Broach
Major lead-time and cost reduction in titanium
A titanium broaching application relied on a high-speed steel full-form broach with a six-month lead time, high cost, and low tool life.APG developed a single-point, double-sided carbide broach to replace the incumbent tool.
Results
• Reduced tool cost from approximately $1,600 to about $62
• Improved performance from about 4 parts per tool to 170 parts on one side
• Maintained comparable cycle time• Generated estimated savings of roughly $68,738
• Eliminated a major lead-time bottleneck
High-Performance End Mill for Stellite
More than doubling tool life in a demanding material
A Stellite application using a conventional end mill was achieving only about 10 parts per tool.APG designed a 16 mm, 15-flute, non-end-cutting end mill and tested coated and uncoated options to optimize performance.
Results
• Increased tool life to about 25 parts per tool
• More than doubled tool performance versus the prior solution
• Identified the best-fit design through application-specific testing
Custom Thread
Mill
Better form control, longer life, fewer adjustments
A 15-5 stainless threading application relied on a hand-modified insert that created inconsistency in thread form and frequent operator compensation. APG designed a solid-carbide single-point thread mill with lateral coolant holes to improve form accuracy and process stability.
Results
• Increased tool life from an initial 73 parts uncoated
• Achieved coated production life of 180 parts and 400 parts, depending on version
• Reduced operator adjustment requirements
• Improved thread form consistency
⭐ Productivity Gains Highlighted
Across many of our custom cutting tools case studies, customers report dramatic improvements in productivity after switching to Acutec‑engineered tools.
These gains appear in several measurable ways:
+More than 20% reduction in cycle time on demanding machining operations
+Improved hole quality in tough, heat‑resistant alloys
+Elimination of chatter in deep‑hole and high‑precision applications

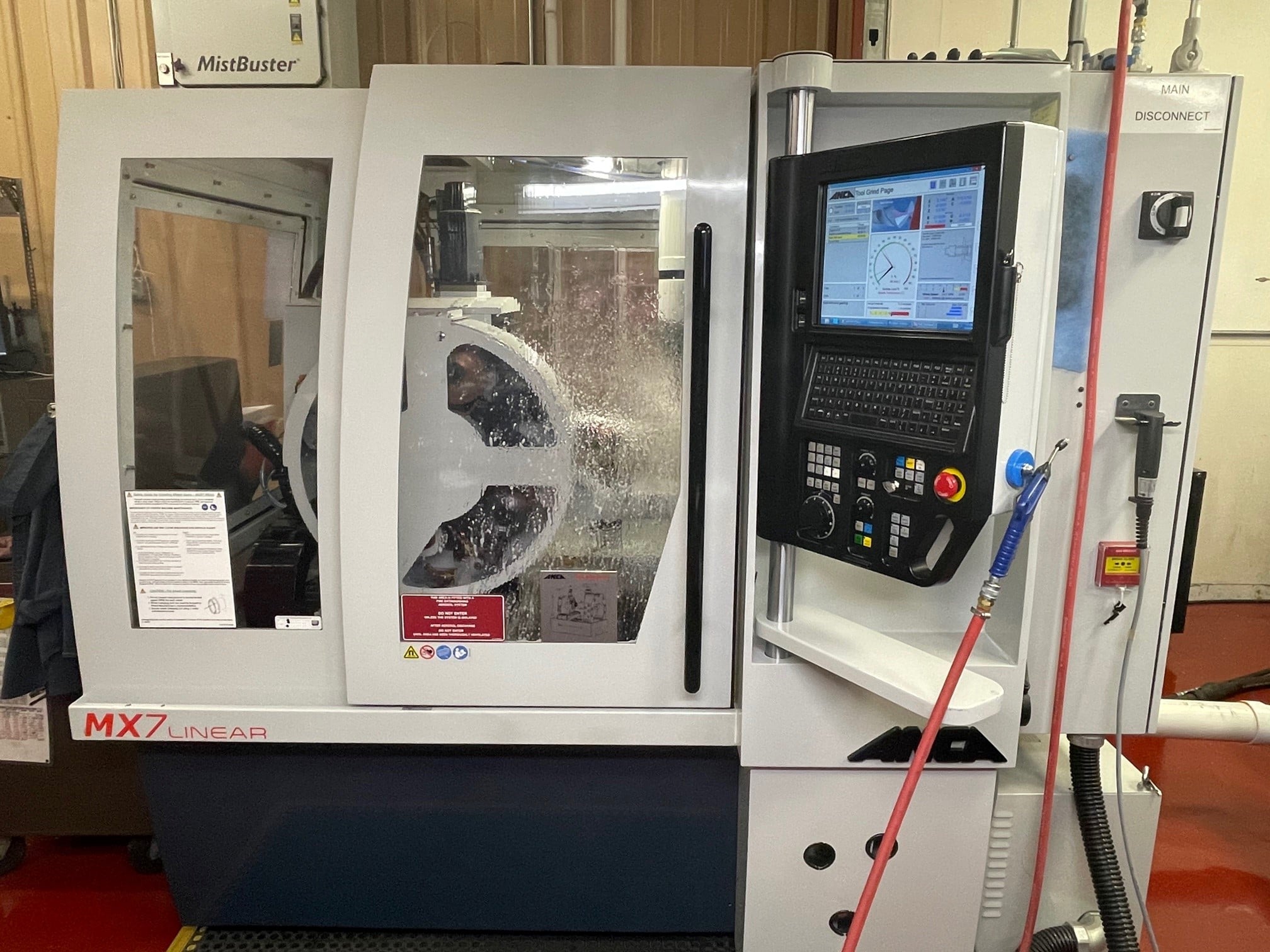

These results are the outcome of deliberate engineering choices, including optimized carbide grades, advanced flute geometries, and precision CNC grinding that ensures every tool meets exact specifications.
⭐ Cost Reductions Through Better Tool Performance
Our case studies also show how custom cutting tools help manufacturers reduce overall production costs.
Key benefits include:
Longer tool life, resulting in fewer replacements and less downtime
Higher accuracy, which reduces scrap rates and rework
Greater consistency, allowing operators to run machines with more confidence
Higher speeds and feeds, made possible by improved stability and geometry
These incremental improvements add up to substantial savings, especially in high‑volume or high‑precision environments where efficiency is critical.
⭐ Collaboration That Drives Better Engineering Outcomes
A recurring theme in our case studies is the value of close collaboration. Many of the strongest results come from projects where our team works directly with machinists, engineers, and production managers. This partnership allows us to tailor each tool to the exact needs of the application by:
+Adjusting edge prep for improved cutting performance
+Modifying flute geometry to enhance chip evacuation
+Selecting carbide grades optimized for heat resistance or wear resistance
+Fine‑tuning tool geometry for specific materials or machining conditions
The result is a tool engineered precisely for the environment in which it will be used—delivering better performance, longer life, and more reliable results.
